Electric vehicles are rapidly popularizing, but there is always a real problem:
The coverage of the charging infrastructure is far from keeping up with the changes in the car scenario.
Restaged areas, rural houses, wooden houses in forest areas
Campsites, RV camps, outdoor activity sites
Disaster emergency, temporary electricity, grid-free areas
In these places, the charging piles of the public grid either do not exist or are extremely unstable.
This is the root cause of the "charging anxiety" of many EV car owners.
At the same time, another trend is also emerging simultaneously:
Off-grid living (off-grid living)
Energy self-sufficiency
Mobile and deployable solar system
Therefore, a problem that is increasingly searched appears:
Can off-grid solar energy really charge electric vehicles?
This article will systematically answer the following key questions:
Is off-grid solar EV charging feasible?
What configuration is needed to be truly "charged"?
Which scenarios are suitable for off-grid solar EV charger?
Where is its cost, limitation and reality boundary?
Can off-grid solar energy really charge electric vehicles?
Conclusion first: Yes, but the prerequisites must be met.
This is also the place where many rival articles "say it's okay, but don't make it clear how to do it".
3 prerequisites that must be met for off-grid EV charging
1. Sufficient power generation capacity (not just "with solar panels")
The energy consumption of electric vehicles is much higher than that of ordinary household appliances.
An electric kettle is 2kW, but it only takes a few minutes;
And EV charging is a continuous high-power electricity consumption behavior.
If the solar system is too small, it can only be "theoretically feasible", but it cannot be used in practice.
2 .Energy-stored batteries are required, not optional.
Solar energy has obvious intermittentness:
There is during the day, but not at night.
There are many sunny days and few rainy days.
The power fluctuates greatly.
And EV charging requires stable and continuous power output.
The off-grid system without energy storage batteries has almost no practical EV charging capacity.
3. The inverter and charging method must match the EV demand.
EV is not an ordinary load:
Sensitive to voltage stability
High requirements for power output
There are requirements for the quality of the waveform.
This means that:
The inverter selection is wrong, and it can't be "charged" even if there is electricity.
So, what can off-grid solar EV charging do? What can't be done?
✔ Can do:
Daily recharge (instead of charging from 0 to 100% every time)
Slow charging / fixed-point charging
Emergency, standby, charging in remote areas
✖ Unrealistic expectations:
Ultra-fast DC fast charging similar to high-speed service area
Instantly fill up with a large-capacity battery with a small number of panels
How does the off-grid solar EV charging system work?
Understanding the principle of the system is the key to building trust.
1. How does energy flow from the sun to electric vehicles?

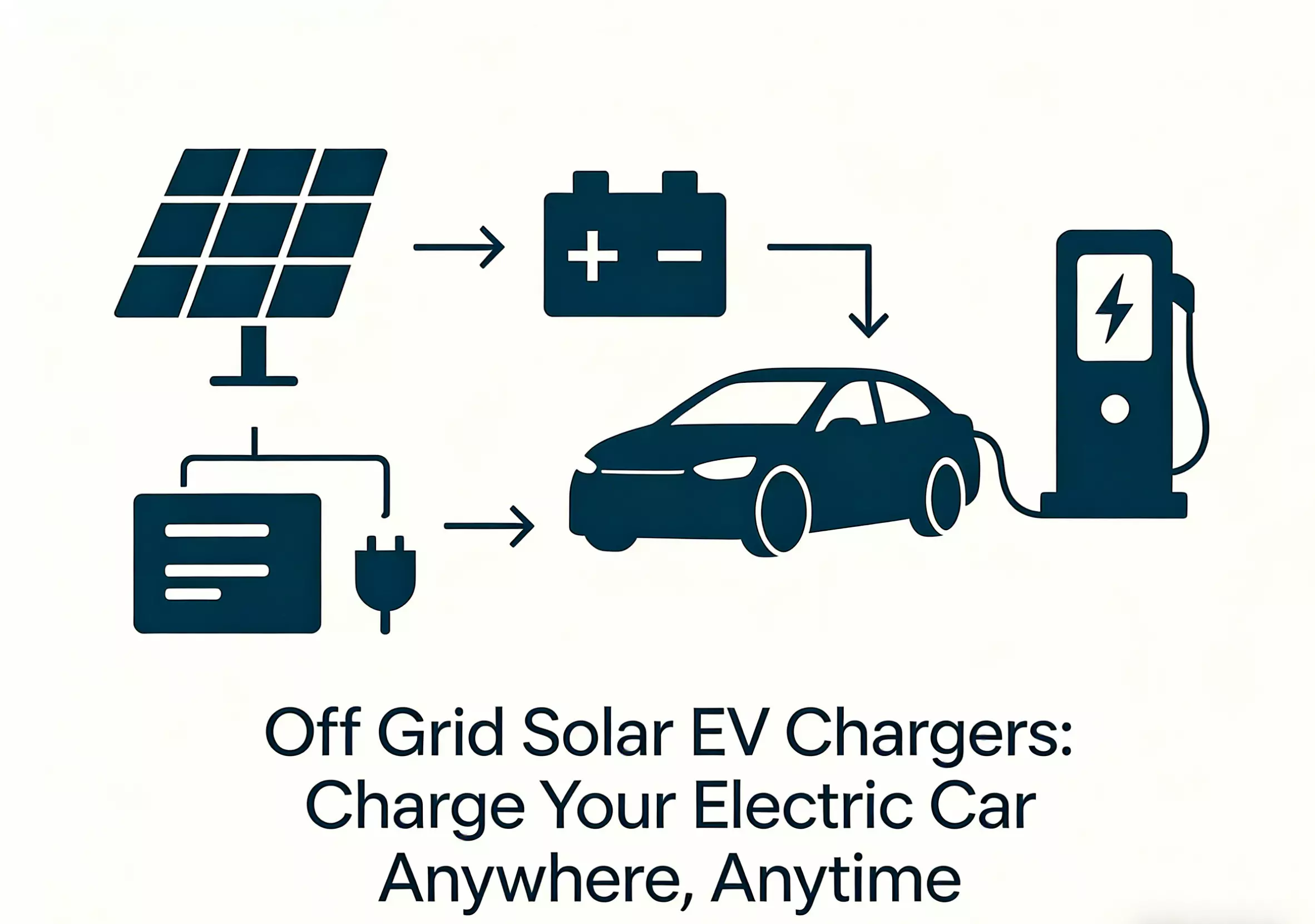

A typical off-grid electric vehicle solar charger, the energy path is as follows:
Solar panel → MPPT controller → energy storage battery → off-grid inverter → EV charger → electric vehicle
The key is not the "number of equipment", but the energy scheduling logic:
Solar energy priority supply load
The excess power is stored in the battery.
When charging, the battery + inverter provides stable output.
That's why system design is more important than a single device.
2. Why is the energy storage battery the "heart" of the whole system?
Compare the two situations:
No energy storage:
If there are too many clouds, the power will drop.
EV charging is frequently interrupted
Energy storage:
Stable output
Can be charged at night or in low light
For EV, energy storage batteries are not "supplement", but infrastructure.
How much solar energy and batteries do you need to charge electric vehicles?
This is the part that really determines whether the system is usable, and it is also where you can obviously surpass your opponent.
1. How much electricity does it usually take to charge an electric car at a time?
Different EVs are very different:
| Vehicle Type | Battery Capacity |
| Small / compact EV | 35 – 45 kWh |
| Mainstream family EV | 50 – 75 kWh |
| Large SUV / Pick-up | 80 – 100+ kWh |
In reality, the off-gry system is more suitable for "replenishment" than "completely full".
For example:
Supplement 10–20 kWh every day
Maintain commuting or short-distance use
2. What power do you need for solar panels?
The key variable is not "panel power", but:
Local effective hours of sunshine
Seasonal changes
Is there an energy storage buffer?
Give an example:
Daily target power replenishment: 15 kWh
Sunshine: 5 hours
Theoretical panel power ≈ 3 kW
Practical suggestion: 4–6 kW (redundant)
This is also why "only looking at the number of panels" is a common mistake.
3. How to calculate the capacity of the energy storage battery?
The EV charging system is much more dependent on batteries than ordinary home energy storage.
Experience suggestions:
Minimum energy storage capacity: 10–15 kWh
More stable scheme: 20–40 kWh
The reason is very simple:
Smooth solar fluctuations
Support continuous charging
Deal with cloudy days and nights
The core of the off-grid solar charging station for EVs is not the panel, but the battery.
List of key equipment for off-grid solar EV charging system
1. Solar modules: efficiency is as important as the deployment method
Single crystal high-efficiency components are better
Fixed / Foldable / Container unfoldable
Floor or roof installation
2. Energy storage battery: capacity, life and safety
Strongly recommend:
LiFePO4 (lithium iron phosphate)
High cycle life
Support high current
BMS protection
3. Off-grid inverter: the key to stable output
Pure sine wave
High instantaneous power
Compatible with EV chargers
4. EV charging method: AC vs DC
The off-network system is mainly based on AC slow charging.
DC fast charging has extremely high requirements for system scale.
In practical application, AC is more economical and stable.
5. The importance of EMS energy management system
EMS can achieve:
Power generation / energy storage / charging priority management
Prevent overload
Improve the overall efficiency
In medium and large-scale off-gride EV charging scenarios, EMS is almost a "necessity".
Off-grid EV charging solutions in different scenarios
1. Off-network housing / wooden house
4–8 kW photovoltaics
20 kWh energy storage
7 kW AC charging
2. RV / Camping / Van Life
Mobile photovoltaics
Modular battery
Replenishment at night
3. Retaway areas and emergency standby
Disaster emergency response
Grid-free area
Key transportation guarantee
4. The possibility of a small off-grid EV charging station
Countryside scenic spot
Ecological camp
Mining area / construction site
Solar EV charger without grid connection is becoming a realistic solution.
Cost, return and realistic limitations
Initial cost composition
Photovoltaic modules
Energy storage battery
Inverter
Structure and control system
Comparison with diesel power generation
No fuel cost
Low maintenance
Long-term more economical
Common misunderstandings
Overestimate the charging speed
Ignore winter and rain
Underestimate the demand for energy storage
Frequently Asked Questions FAQ
Q: Can I charge EV every day?
A: If the system scale is sufficient, it is possible.
Q: Can I charge EV directly with solar panels?
A: It is not recommended. It will be very unstable without energy storage.
Q: Can it still be used in winter?
A: Yes, but it requires greater energy storage and redundant design.
Who is suitable for off-grid solar EV charging? What should we do next?
Suitable people
Off-network housing
Remote areas
Camping / RV users
People who pay attention to energy independence
Unsuitable people
Only pursue high-speed fast charging
The space is extremely limited.
Unwilling to accept the cost of systematic planning
When the power grid is no longer a restriction, travel is truly free.
Off-grid solar EV charger is not a gimmick, but a mature energy solution.
It is not necessarily suitable for everyone, but for the right scene, it means:
Not restricted by the power grid
Not influenced by the oil price
Don't be slowed down by the infrastructure
