In the past few years, "off-network life", "energy independence" and "independent power supply" have quickly entered the public's vision from niche concepts. Whether you want to reduce the electricity bill, build reliable power supply for remote residences, or have backup power in the event of a power outage, an efficient off grid solar battery system may be your long-term solution.
After 2025, off-network technology is undergoing significant changes: higher system efficiency, lower component cost, and stronger integration. For ordinary users, building a complete off-grid battery storage system is no longer a high-threshold project, but more like an "energy transformation project" that can be completed gradually.
This article will provide you with the most comprehensive construction path for off-network systems in 2025 from trends, component selection, system planning, installation and construction to efficiency optimization.
Why is it so important to build an off-line system in 2025?
Rising electricity prices and energy instability have become the norm.
Electricity prices in many countries around the world have risen by more than 10%. Power outages and power restrictions still occur in some areas. More and more families do not want to entrust energy security entirely to the power grid.
The cost of off-grid technology has decreased by 20%-40% compared with five years ago.
The prices of photovoltaic modules, batteries, inverters and BMS systems have continued to declin in recent years, making solar battery setup for off-grid homes more affordable and shorter investment recovery cycle.
Energy autonomy has become a new trend.
Whether you live in rural areas, mountains, farms, holiday cottages, mobile RVs, a set of solar off-grid power with battery can get you out of uncertainty.
The policy environment is more friendly.
The tax rebate and subsidy policies of many countries have strengthened the attractiveness of off-network system construction.
The latest trend of off-grid solar energy technology in 2025
1. Battery technology is more efficient: from 48V system to higher compatibility
Lithium batteries (especially LiFePO4) have become the mainstream of off-grid systems, which are manifested as:
Life expectancy extended to 6,000+ cycles
More secure
The discharge depth can reach 80%-90%
2. Inverter integration improvement (Hybrid All-in-One becomes mainstream)
The most obvious trend in 2025:
Inverter + charger + MPPT controller + monitoring system integration makes installation easier and system compatibility stronger.
3. Intelligent EMS (Energy Management System) participates in scheduling
The new generation of energy storage system for off-grid solar can predict lighting and load through AI, charge and discharge in the best way, and improve overall efficiency.
4. The trend of large-sized photovoltaic modules + high conversion efficiency is obvious
The power of a single panel is generally increased to 450W–600W
The conversion efficiency can reach 22%–23%
This means that the same area brings more power generation.
Core components and selection guide of off-grid system (how to choose “efficient”?)

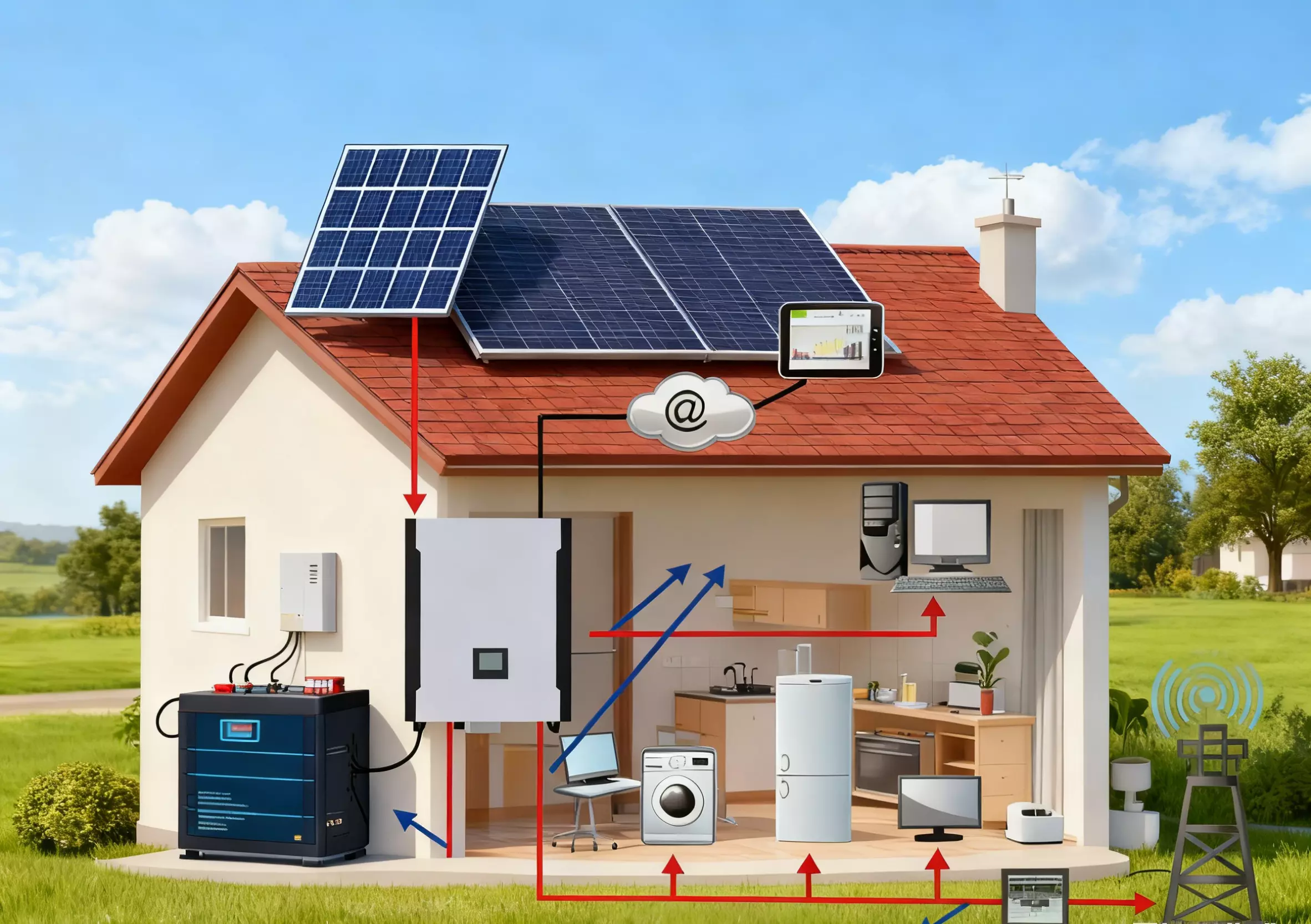

A complete off-grid solar battery system usually includes:
1. Solar panels
Choose the key points:
Priority selection of crystalline silicon (more efficient)
Back contact, half-chip, high-current components have become the standard configuration of 2025
Different glass coatings should be selected for different scenarios (anti-PID, anti-shadow decay, etc.)
The principle of efficient selection:
Areas with sufficient sunlight: optional high-power panel (500W+)
Rainy areas: give priority to PERC or TOPCon with better low-light performance
2. Battery energy storage system
This is the core of whether the system can "run stably".
Choose the key points:
First choice LiFePO4 (lithium iron phosphate)
Lifespan ≥ 4000 times
Support ≥ 1C discharge rate is better
BMS supports Bluetooth, APP or remote monitoring
Capacity suggestion:
If the family consumes 4kWh of electricity per day, 5–8kWh energy storage can be configured.
3. Off-network inverter
The key to an efficient system is:
Conversion efficiency ≥ 93%
Support high surge (especially important when starting high-power electrical appliances)
Compatible with different battery types
Built-in MPPT is better (simplify the system)
4. MPPT controller
Decide on the charging efficiency, suggest:
MPPT is 15%-30% higher than PWM charging efficiency
Support high current input
Overcharge, overcharge, temperature protection mechanism
5. Auxiliary materials
For example, photovoltaic brackets, PV cables, fuses, circuit breakers, terminal blocks, etc., their quality should not be ignored, otherwise they may cause safety hazards.
How to Plan System Scale (with Calculation Logic and Examples)
A key step in building an efficient system is to accurately calculate "how much electricity I actually need."
Step 1: Calculate Daily Electricity Consumption
List all appliances (wattage × usage time), for example:
| Appliance | Power (W) | Usage Time (h) | Daily Consumption (Wh) |
| Refrigerator | 120 | 8 | 960 |
| Lights | 10 | 5 | 50 |
| Fan | 60 | 4 | 240 |
| Total | — | — | ~1,250 Wh |
Step 2: Calculate the required solar panel power
Formula:
Solar panel power = daily power consumption ÷ (effective daylight hours × 0.8)
Assuming that the local sunshine is 5 hours, the demand is 2000Wh:
2000 ÷ (5×0.8) ≈ 500W component
If you want to improve stability, it is recommended to ×1.3~1.5 times.
Step 3: Calculate the battery capacity
Formula:
Battery capacity (Wh) = daily power consumption × 1.5–2 times emergency reserve
LiFePO4 can use 80% discharge depth:
If the family uses 2kWh of electricity every day:
Required storage energy ≈ 3~4kWh
Calculated into a 48V system:
4000Wh ÷ 48V ≈ 83Ah
It is usually safer to configure more than 100Ah.
Step 4: Inverter selection
The inverter must not be "small horse and big car":
Rules:
Inverter rated power ≥ maximum load power × 1.3–1.5 times
For example:
Maximum simultaneous load = 1500W
Recommended inverter ≥ 2000W
Construction and installation: soft guidance that can be operated by beginners
1. Installation of photovoltaic panels
Facing south/facing the sun
Angle = local latitude ±10°
Try to avoid shadows (shadows will cause the decay of the whole series of modules)
2. Battery installation
Cool and ventilated
Avoid high temperature and high humidity
Fix it firmly and stay away from combustible materials.
If there are conditions, you can add a protective box.
3. Inverter and controller
Installed on the dry wall
Avoid direct sunlight
Leave enough heat dissipation space (10cm+)
How to improve system efficiency (master’s practical skills)
1. Adjust the angle of the board surface + clean the panel
An angle difference of 5° will affect the power generation, and dust will cause a loss of 3%-10%.
2. Lower the battery temperature = improve the life
The battery has the best life cycle at 15°C–35°C.
3. Make the system "automatically smart"
Intelligent BMS or EMS can do:
Automatic scheduling of charging and discharging
Predict the weather and overcharge in advance
Avoid deep discharge
4. The thicker the cable, the better.
Reducing the pressure drop can improve the efficiency by 2%-3%.
Suggestions for system expansion and upgrade
When your off-grid solar system is running stably, you may find--
"The electricity is enough, but it would be better if it could be more electricity and smarter."
At this time, it is time to consider the expansion and upgrade of the system.
1. Increase solar panels to improve power generation capacity
If you often encounter a lack of electricity in rainy days, or plan to connect to more electrical appliances, you can consider increasing the number of solar panels.
The parallel connection can increase the total current, thus speeding up the charging speed;
Series connection can increase the system voltage and reduce line loss (provided that the controller supports a higher input voltage).
Tips: Please check the maximum input power and voltage range of your charging controller before expanding to avoid overload.
2. Expand the battery pack to extend the battery life
In areas where there is a lot of electricity at night and a long cloudy day, a larger battery capacity can bring a more reassuring experience.
You can expand the capacity in the following two ways:
Parallel expansion: connect several more batteries of the same specification to improve the total capacity;
Replace larger-capacity batteries: for example, upgrade from 100Ah to 200Ah lithium iron phosphate batteries.
Note: All batteries should have the same model and similar service life, otherwise it is easy to cause voltage imbalance and affect the service life.
3. Introduce an intelligent monitoring system
If you want to understand the operation of the system more conveniently, there are many smart controllers with Bluetooth or Wi-Fi on the market now.
Through the mobile phone App, you can view in real time:
Current power generation
Battery power and charge and discharge curve
Historical data statistics and running logs
This not only makes management easier, but also can find and deal with problems as soon as possible.
4. Add a backup power supply
For users who rely on off-line systems all year round, it is a wise choice to have a backup power supply.
You can add:
Small wind generators are used to replenish energy in windy areas;
Portable diesel generator, emergency power supply in continuous rainy weather.
This kind of hybrid power supply mode (solar + wind + generator) can significantly improve the reliability of the system.
Common mistakes and professional advice
1 The estimated electricity consumption is too small
80% of beginners will underestimate the actual demand.
2 The inverter is too small
It causes electrical appliances to fail to start (such as the surge current of the refrigerator).
3 Use PWM controller
It seriously reduces the charging efficiency. It is recommended to use all MPPT.
4 Excessive discharge of the battery depth
It will shorten the lifespan. Be sure to use smart BMS.
5 Do not install fuses/circuit breakers
This is the most serious mistake with the greatest safety hazard.
The best path to build an efficient off-line system in 2025
If you want to build a truly efficient, durable and scalable off-network system in 2025, you can follow the following path:
Start with the evaluation of power consumption (this is the foundation of the whole system)
Select high-efficiency components: LiFePO4 + MPPT + high-efficiency single crystal panel
Prioritize in inverters and batteries (they affect the stability of the system)
Scientific installation: angle + heat dissipation + protection
Join the intelligent management system (EMS/BMS)
Reserve expansion capacity (the 2025 trend is "extensibility priority")
As long as you follow the above steps, you can build a truly efficient off-grid solar backup battery system, so that you can have a stable and independent power source in any environment.
